FLAT DROP CABLE (LT type)
홈 > PRODUCTS > FLAT DROP CABLE (LT type)
FLAT DROP CABLE (LT type)

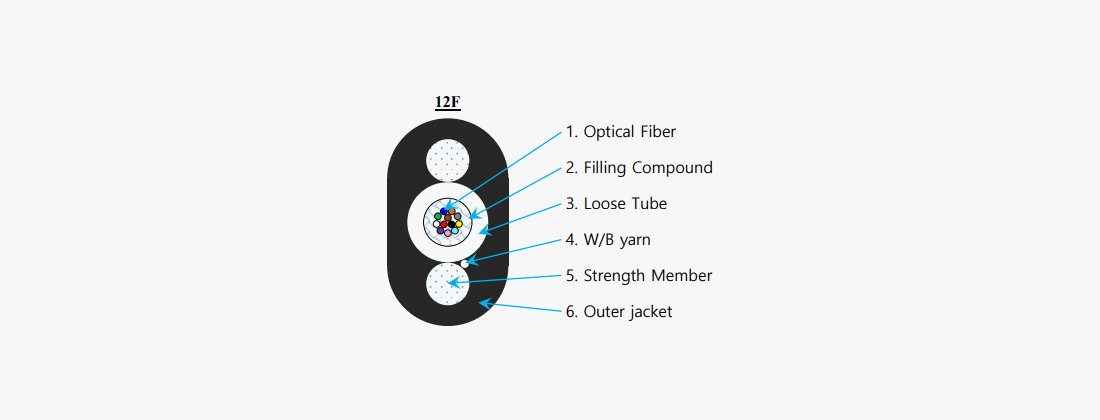

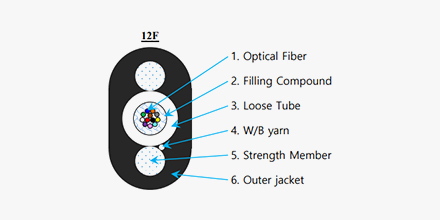

A UV resistant jacket and available without fire code constraints. Black HDPE jacket constructions allow OCC’s flat drop cables to be used for general outdoor applications. Constructions consist of 250㎛ color coded fibers in loose tube with filing compound, FRP, water blocking yarn and outer jacket.
FEATURES
- Single-mode 2~12 fibers available, Small diameter, Easy handling.
- Excellent mechanical & environmental performance
- Sheath materials: HDPE
APPLICATIONS
Aerial, Outdoor, Duct| ALSO AVAILABLE UPON REQUEST |
| Optical fibers compliant with ITU-T G.652D standards |
| HDPE Jacket |
| OFNP | |
| Storage Temp | -40 / +70 |
| Operating Temp | -40 / +70 |
| OFNR | |
| Storage Temp | -40 / +70 |
| Operating Temp | -40 / +70 |
SINGLE MODE OS1(ITU-T G.652.D)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber
Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09DF01CD0NLBK3360
LSZH
3.3 x 6.0
1
21
16.0/8.0
S09DF02CD0NLBK3360
LSZH
3.3 x 6.0
2
21
16.0/8.0
S09DF04CD0NLBK3360
LSZH
3.3 x 6.0
4
21
16.0/8.0
S09DF06CD0NLBK3360
LSZH
3.3 x 6.0
6
21
16.0/8.0
S09DF08CD0NLBK3360
LSZH
3.3 x 6.0
8
21
16.0/8.0
S09DF12CD0NLBK3360
LSZH
3.3 x 6.0
12
21
16.0/8.0
SINGLE MODE OS2(ITU-T G.657.A2)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber
Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09DF01CA2NLBK3360
LSZH
3.3 x 6.0
1
21
16.0/8.0
S09DF02CA2NLBK3360
LSZH
3.3 x 6.0
2
21
16.0/8.0
S09DF04CA2NLBK3360
LSZH
3.3 x 6.0
4
21
16.0/8.0
S09DF06CA2NLBK3360
LSZH
3.3 x 6.0
6
21
16.0/8.0
S09DF08CA2NLBK3360
LSZH
3.3 x 6.0
8
21
16.0/8.0
S09DF12CA2NLBK3360
LSZH
3.3 x 6.0
12
21
16.0/8.0
SINGLE MODE OS2(ITU-T G.657.B3)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber
Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09DF01CB3NLBK3360
LSZH
3.3 x 6.0
1
21
16.0/8.0
S09DF02CB3NLBK3360
LSZH
3.3 x 6.0
2
21
16.0/8.0
S09DF04CB3NLBK3360
LSZH
3.3 x 6.0
4
21
16.0/8.0
S09DF06CB3NLBK3360
LSZH
3.3 x 6.0
6
21
16.0/8.0
S09DF08CB3NLBK3360
LSZH
3.3 x 6.0
8
21
16.0/8.0
S09DF12CB3NLBK3360
LSZH
3.3 x 6.0
12
21
16.0/8.0
| Part Number | Cable Rating | Nominal Diameter (mm) |
Fiber Count |
Weight kg/km |
Bend Radius (Install/Operate cm) |
| S09DF01CD0NLBK3360 | LSZH | 3.3 x 6.0 | 1 | 21 | 16.0/8.0 |
| S09DF02CD0NLBK3360 | LSZH | 3.3 x 6.0 | 2 | 21 | 16.0/8.0 |
| S09DF04CD0NLBK3360 | LSZH | 3.3 x 6.0 | 4 | 21 | 16.0/8.0 |
| S09DF06CD0NLBK3360 | LSZH | 3.3 x 6.0 | 6 | 21 | 16.0/8.0 |
| S09DF08CD0NLBK3360 | LSZH | 3.3 x 6.0 | 8 | 21 | 16.0/8.0 |
| S09DF12CD0NLBK3360 | LSZH | 3.3 x 6.0 | 12 | 21 | 16.0/8.0 |
| Part Number | Cable Rating | Nominal Diameter (mm) |
Fiber Count |
Weight kg/km |
Bend Radius (Install/Operate cm) |
| S09DF01CA2NLBK3360 | LSZH | 3.3 x 6.0 | 1 | 21 | 16.0/8.0 |
| S09DF02CA2NLBK3360 | LSZH | 3.3 x 6.0 | 2 | 21 | 16.0/8.0 |
| S09DF04CA2NLBK3360 | LSZH | 3.3 x 6.0 | 4 | 21 | 16.0/8.0 |
| S09DF06CA2NLBK3360 | LSZH | 3.3 x 6.0 | 6 | 21 | 16.0/8.0 |
| S09DF08CA2NLBK3360 | LSZH | 3.3 x 6.0 | 8 | 21 | 16.0/8.0 |
| S09DF12CA2NLBK3360 | LSZH | 3.3 x 6.0 | 12 | 21 | 16.0/8.0 |
SINGLE MODE OS2(ITU-T G.657.B3)
Part Number
Cable Rating
Nominal Diameter
(mm)
Fiber
Count
Weight
kg/km
Bend Radius
(Install/Operate cm)
S09DF01CB3NLBK3360
LSZH
3.3 x 6.0
1
21
16.0/8.0
S09DF02CB3NLBK3360
LSZH
3.3 x 6.0
2
21
16.0/8.0
S09DF04CB3NLBK3360
LSZH
3.3 x 6.0
4
21
16.0/8.0
S09DF06CB3NLBK3360
LSZH
3.3 x 6.0
6
21
16.0/8.0
S09DF08CB3NLBK3360
LSZH
3.3 x 6.0
8
21
16.0/8.0
S09DF12CB3NLBK3360
LSZH
3.3 x 6.0
12
21
16.0/8.0
| Part Number | Cable Rating | Nominal Diameter (mm) |
Fiber Count |
Weight kg/km |
Bend Radius (Install/Operate cm) |
| S09DF01CB3NLBK3360 | LSZH | 3.3 x 6.0 | 1 | 21 | 16.0/8.0 |
| S09DF02CB3NLBK3360 | LSZH | 3.3 x 6.0 | 2 | 21 | 16.0/8.0 |
| S09DF04CB3NLBK3360 | LSZH | 3.3 x 6.0 | 4 | 21 | 16.0/8.0 |
| S09DF06CB3NLBK3360 | LSZH | 3.3 x 6.0 | 6 | 21 | 16.0/8.0 |
| S09DF08CB3NLBK3360 | LSZH | 3.3 x 6.0 | 8 | 21 | 16.0/8.0 |
| S09DF12CB3NLBK3360 | LSZH | 3.3 x 6.0 | 12 | 21 | 16.0/8.0 |
