DROP CABLE (Round)

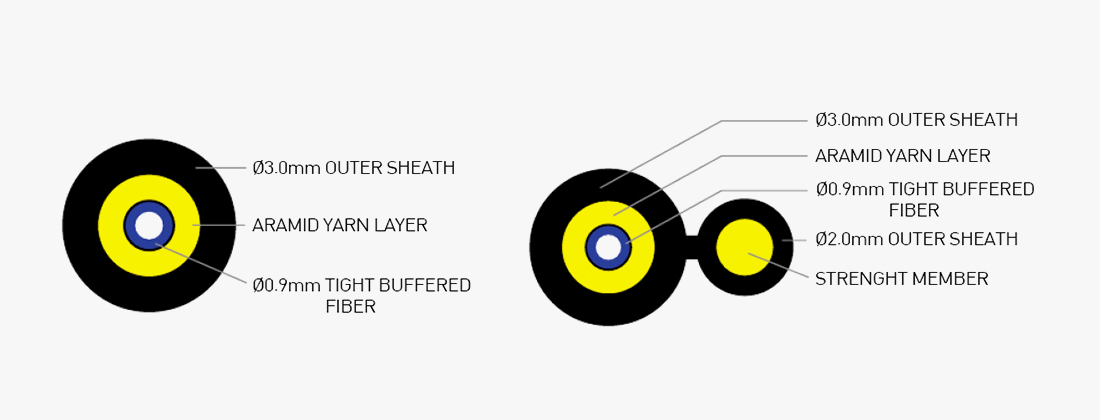

A UV resistant jacket and available without fire code constraints. Black LSZH constructions allow OASIS's drop cables to be used for general outdoor applications while having the flexibility for indoor deployment. Constructions consist of 900um color coded tight buffers, aramid yarn and strength member.
FEATURES
- 600μm tight buffers available. 900μm tight buffers, Aramid yarn strength members
- Light weight, Small diameter, Easy handling, Low attenuation
APPLICATIONS
Aerial, Outdoor, DuctSPECIFICATIONS
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| Optical fibers compliant with ITU-T G.657.A/B standards | Storage Temp | -40/+70℃ | Operating Temp | -40/+70℃ |
| TPU Jacket | OFNR | |||
| LSZH Jacket, Indoor / Outdoor Breakout | Storage Temp | -40/+70℃ | Operating Temp | -40/+70℃ |
SINGLE MODE OS2(ITU-T G.657.A1)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DR01CA1NLBK30
LSZH
3.0
1
8
6.0/3.0
S09DR02CA1NLBK36
LSZH
3.6
2
14
6.0/3.0
S09DR04CA1NLBK36
LSZH
3.6
4
14
6.0/3.0
S09DR01CA1NLBK2030
LSZH
2.0 x 3.0
1
18
6.0/3.0
S09DR02CA1NLBK2036
LSZH
2.0 x 3.6
2
24
6.0/3.0
S09DR04CA1NLBK2036
LSZH
2.0 x 3.6
4
24
6.0/3.0
SINGLE MODE OS2(ITU-T G.657.A2)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DR01CA2NLBK30
LSZH
3.0
1
8
6.0/3.0
S09DR02CA2NLBK36
LSZH
3.6
2
14
6.0/3.0
S09DR04CA2NLBK36
LSZH
3.6
4
14
6.0/3.0
S09DR01CA2NLBK2030
LSZH
2.0 x 3.0
1
18
6.0/3.0
S09DR02CA2NLBK2036
LSZH
2.0 x 3.6
2
24
6.0/3.0
S09DR04CA2NLBK2036
LSZH
2.0 x 3.6
4
24
6.0/3.0
SINGLE MODE OS2(ITU-T G.657.B3)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DR01CB3NLBK30
LSZH
3.0
1
8
6.0/3.0
S09DR02CB3NLBK36
LSZH
3.6
2
14
6.0/3.0
S09DR04CB3NLBK36
LSZH
3.6
4
14
6.0/3.0
S09DR01CB3NLBK2030
LSZH
2.0 x 3.0
1
18
6.0/3.0
S09DR02CB3NLBK2036
LSZH
2.0 x 3.6
2
24
6.0/3.0
S09DR04CB3NLBK2036
LSZH
2.0 x 3.6
4
24
6.0/3.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
| S09DR01CA1NLBK30 | LSZH | 3.0 | 1 | 8 | 6.0/3.0 |
| S09DR02CA1NLBK36 | LSZH | 3.6 | 2 | 14 | 6.0/3.0 |
| S09DR04CA1NLBK36 | LSZH | 3.6 | 4 | 14 | 6.0/3.0 |
| S09DR01CA1NLBK2030 | LSZH | 2.0 x 3.0 | 1 | 18 | 6.0/3.0 |
| S09DR02CA1NLBK2036 | LSZH | 2.0 x 3.6 | 2 | 24 | 6.0/3.0 |
| S09DR04CA1NLBK2036 | LSZH | 2.0 x 3.6 | 4 | 24 | 6.0/3.0 |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
| S09DR01CA2NLBK30 | LSZH | 3.0 | 1 | 8 | 6.0/3.0 |
| S09DR02CA2NLBK36 | LSZH | 3.6 | 2 | 14 | 6.0/3.0 |
| S09DR04CA2NLBK36 | LSZH | 3.6 | 4 | 14 | 6.0/3.0 |
| S09DR01CA2NLBK2030 | LSZH | 2.0 x 3.0 | 1 | 18 | 6.0/3.0 |
| S09DR02CA2NLBK2036 | LSZH | 2.0 x 3.6 | 2 | 24 | 6.0/3.0 |
| S09DR04CA2NLBK2036 | LSZH | 2.0 x 3.6 | 4 | 24 | 6.0/3.0 |
SINGLE MODE OS2(ITU-T G.657.B3)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
S09DR01CB3NLBK30
LSZH
3.0
1
8
6.0/3.0
S09DR02CB3NLBK36
LSZH
3.6
2
14
6.0/3.0
S09DR04CB3NLBK36
LSZH
3.6
4
14
6.0/3.0
S09DR01CB3NLBK2030
LSZH
2.0 x 3.0
1
18
6.0/3.0
S09DR02CB3NLBK2036
LSZH
2.0 x 3.6
2
24
6.0/3.0
S09DR04CB3NLBK2036
LSZH
2.0 x 3.6
4
24
6.0/3.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
| S09DR01CB3NLBK30 | LSZH | 3.0 | 1 | 8 | 6.0/3.0 |
| S09DR02CB3NLBK36 | LSZH | 3.6 | 2 | 14 | 6.0/3.0 |
| S09DR04CB3NLBK36 | LSZH | 3.6 | 4 | 14 | 6.0/3.0 |
| S09DR01CB3NLBK2030 | LSZH | 2.0 x 3.0 | 1 | 18 | 6.0/3.0 |
| S09DR02CB3NLBK2036 | LSZH | 2.0 x 3.6 | 2 | 24 | 6.0/3.0 |
| S09DR04CB3NLBK2036 | LSZH | 2.0 x 3.6 | 4 | 24 | 6.0/3.0 |
