INDOOR/OUTDOOR
A UV resistant jacket and available without fire code constraints. OFNR and OFNP constructions allow OASIS's indoor/outdoor cables to be used for general indoor applications while having the flexibility for outdoor deployment. Constructions consist of 900um color coded tight buffers and water blocking aramid yarn.
FEATURES

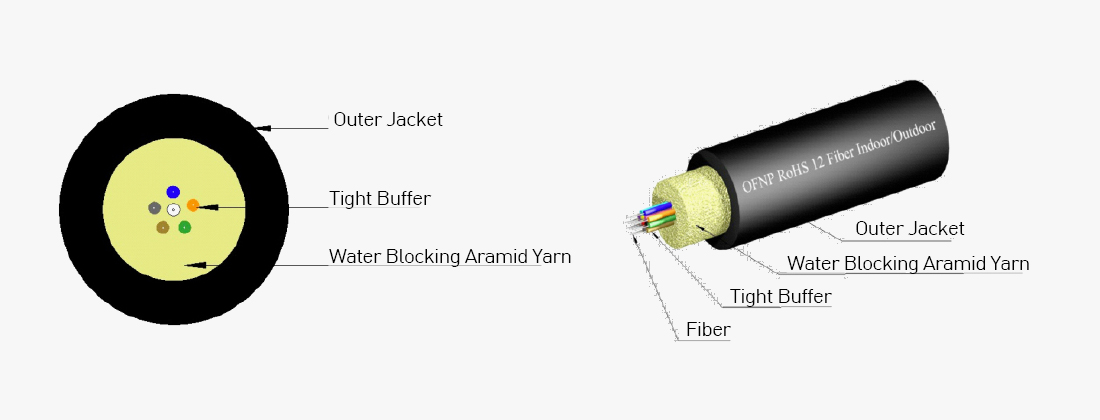

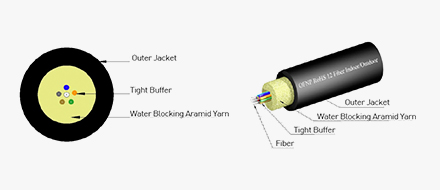

- 900um tight buffer, Water blocking aramid yarn strength members
- UV resistant jacket, OFNR and OFNP rated construction
- Exclusive use of Corning® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Buffers strip consistently, helpful for onsite termination
- Durable jacket offers added protection during installation and in rugged use applications
APPLICATIONS
Riser, Plenum, DuctSPECIFICATIONS
| ALSO AVAILABLE UPON REQUEST | OFNP | |||
| 50/125 MULTIMODE ClearCurve® OM4 | Storage Temp | -40/+70℃ | Operating Temp | -40/+70℃ |
| Optical fibers compliant with ITU-T G.657.A/B standards | OFNR | |||
| LSZH Jacket, Indoor / Outdoor Breakout | Storage Temp | -40/+70℃ | Operating Temp | -20/+70℃ |
SINGLE MODE OS2(ITU-T G.657.A1)
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
S09IO02CA1NRBK
OFNR
4.4
2
15
6.6/4.4
S09IO04CA1NRBK
OFNR
4.8
4
20
7.2/4.8
S09IO06CA1NRBK
OFNR
5.3
6
25
8.0/5.3
S09IO08CA1NRBK
OFNR
5.8
8
32
8.7/5.8
S09IO12CA1NRBK
OFNR
6.3
12
43
9.5/6.3
S09IO24CA1NRBK
OFNR
8.3
24
54
12.5/8.3
S09IO48CA1NRBK
OFNR
15.4
48
186
23.1/15.4
S09IO72CA1NRBK
OFNR
20
72
315
30/20.0
PLENUM
S09IO02CA1NPBK
OFNP
4.4
2
18
6.6/4.4
S09IO04CA1NPBK
OFNP
4.8
4
24
7.2/4.8
S09IO06CA1NPBK
OFNP
5.3
6
29
8.0/5.3
S09IO08CA1NPBK
OFNP
5.8
8
39
8.7/5.8
S09IO12CA1NPBK
OFNP
6.3
12
52
9.6/6.3
S09IO24CA1NPBK
OFNP
8.3
24
64
12.5/8.3
S09IO48CA1NPBK
OFNP
15.4
48
218
23.1/15.4
S09IO72CA1NPBK
OFNP
20
72
347
30/20.0
62.5/125 MULTIMODE OM1
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M62IO02CM1NRBK
OFNR
4.4
2
15
6.6/4.4
M62IO04CM1NRBK
OFNR
4.8
4
20
7.2/4.8
M62IO06CM1NRBK
OFNR
5.3
6
25
8.0/5.3
M62IO08CM1NRBK
OFNR
5.8
8
32
8.7/5.8
M62IO12COM1NRBL
OFNR
6.3
12
43
9.5/6.3
M62IO24COM1NRBL
OFNR
8.3
24
54
12.5/8.3
M62IO48COM1NRBL
OFNR
15.4
48
186
23.1/15.4
M62IO72COM1NRBL
OFNR
20
72
315
30/20.0
PLENUM
M62IO02COM1NPBL
OFNP
4.4
2
18
6.6/4.4
M62IO04COM1NPBL
OFNP
4.8
4
24
7.2/4.8
M62IO06COM1NPBL
OFNP
5.3
6
29
8.0/5.3
M62IO08COM1NPBL
OFNP
5.8
8
39
8.7/5.8
M62IO12COM1NPBL
OFNP
6.3
12
52
9.6/6.3
M62IO24COM1NPBL
OFNP
8.3
24
64
12.5/8.3
M62IO48COM1NPBL
OFNP
15.4
48
218
23.1/15.4
M62IO72COM1NPBL
OFNP
20
72
347
30/20.0
50/125 MULTIMODE OM2
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50IO02CM2NRBL
OFNR
4.4
2
15
6.6/4.4
M50IO04CM2NRBL
OFNR
4.8
4
20
7.2/4.8
M50IO06CM2NRBL
OFNR
5.3
6
25
8.0/5.3
M50IO08CM2NRBL
OFNR
5.8
8
32
8.7/5.8
M50IO12CM2NRBL
OFNR
6.3
12
43
9.5/6.3
M50IO24CM2NRBL
OFNR
8.3
24
54
12.5/8.3
M50IO48CM2NRBL
OFNR
15.4
48
186
23.1/15.4
M50IO72CM2NRBL
OFNR
20
72
315
30/20.0
PLENUM
M50IO02CM2NPBL
OFNP
4.4
2
18
6.6/4.4
M50IO04CM2NPBL
OFNP
4.8
4
24
7.2/4.8
M50IO06CM2NPBL
OFNP
5.3
6
29
8.0/5.3
M50IO08CM2NPBL
OFNP
5.8
8
39
8.7/5.8
M50IO12CM2NPBL
OFNP
6.3
12
52
9.6/6.3
M50IO24CM2NPBL
OFNP
8.3
24
64
12.5/8.3
M50IO48CM2NPBL
OFNP
15.4
48
218
23.1/15.4
M50IO72CM2NPBL
OFNP
20
72
347
30/20.0
50/125 MULTIMODE OM3
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50IO02CM3NRBL
OFNR
4.4
2
15
6.6/4.4
>M50IO04CM3NRBL
OFNR
4.8
4
20
7.2/4.8
M50IO06CM3NRBL
OFNR
5.3
6
25
8.0/5.3
M50IO08CM3NRBL
OFNR
5.8
8
32
8.7/5.8
M50IO12CM3NRBL
OFNR
6.3
12
43
9.5/6.3
M50IO24CM3NRBL
OFNR
8.3
24
54
12.5/8.3
M50IO48CM3NRBL
OFNR
15.4
48
186
23.1/15.4
M50IO72CM3NRBL
OFNR
20
72
315
30/20.0
PLENUM
M50IO02CM3NPBL
OFNP
4.4
2
18
6.6/4.4
M50IO04CM3NPBL
OFNP
4.8
4
24
7.2/4.8
M50IO06CM3NPBL
OFNP
5.3
6
29
8.0/5.3
M50IO08CM3NPBL
OFNP
5.8
8
39
8.7/5.8
M50IO12CM3NPBL
OFNP
6.3
12
52
9.6/6.3
M50IO24CM3NPBL
OFNP
8.3
24
64
12.5/8.3
M50IO48CM3NPBL
OFNP
15.4
48
218
23.1/15.4
M50IO72CM3NPBL
OFNP
20
72
347
30/20.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | S09IO02CA1NRBK | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| S09IO04CA1NRBK | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| S09IO06CA1NRBK | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| S09IO08CA1NRBK | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| S09IO12CA1NRBK | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| S09IO24CA1NRBK | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| S09IO48CA1NRBK | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| S09IO72CA1NRBK | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | S09IO02CA1NPBK | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| S09IO04CA1NPBK | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| S09IO06CA1NPBK | OFNP | 5.3 | 6 | 29 | 8.0/5.3 | |
| S09IO08CA1NPBK | OFNP | 5.8 | 8 | 39 | 8.7/5.8 | |
| S09IO12CA1NPBK | OFNP | 6.3 | 12 | 52 | 9.6/6.3 | |
| S09IO24CA1NPBK | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| S09IO48CA1NPBK | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| S09IO72CA1NPBK | OFNP | 20 | 72 | 347 | 30/20.0 | |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M62IO02CM1NRBK | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| M62IO04CM1NRBK | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| M62IO06CM1NRBK | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| M62IO08CM1NRBK | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| M62IO12COM1NRBL | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| M62IO24COM1NRBL | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| M62IO48COM1NRBL | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| M62IO72COM1NRBL | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | M62IO02COM1NPBL | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| M62IO04COM1NPBL | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| M62IO06COM1NPBL | OFNP | 5.3 | 6 | 29 | 8.0/5.3 | |
| M62IO08COM1NPBL | OFNP | 5.8 | 8 | 39 | 8.7/5.8 | |
| M62IO12COM1NPBL | OFNP | 6.3 | 12 | 52 | 9.6/6.3 | |
| M62IO24COM1NPBL | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| M62IO48COM1NPBL | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| M62IO72COM1NPBL | OFNP | 20 | 72 | 347 | 30/20.0 | |
50/125 MULTIMODE OM2
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50IO02CM2NRBL
OFNR
4.4
2
15
6.6/4.4
M50IO04CM2NRBL
OFNR
4.8
4
20
7.2/4.8
M50IO06CM2NRBL
OFNR
5.3
6
25
8.0/5.3
M50IO08CM2NRBL
OFNR
5.8
8
32
8.7/5.8
M50IO12CM2NRBL
OFNR
6.3
12
43
9.5/6.3
M50IO24CM2NRBL
OFNR
8.3
24
54
12.5/8.3
M50IO48CM2NRBL
OFNR
15.4
48
186
23.1/15.4
M50IO72CM2NRBL
OFNR
20
72
315
30/20.0
PLENUM
M50IO02CM2NPBL
OFNP
4.4
2
18
6.6/4.4
M50IO04CM2NPBL
OFNP
4.8
4
24
7.2/4.8
M50IO06CM2NPBL
OFNP
5.3
6
29
8.0/5.3
M50IO08CM2NPBL
OFNP
5.8
8
39
8.7/5.8
M50IO12CM2NPBL
OFNP
6.3
12
52
9.6/6.3
M50IO24CM2NPBL
OFNP
8.3
24
64
12.5/8.3
M50IO48CM2NPBL
OFNP
15.4
48
218
23.1/15.4
M50IO72CM2NPBL
OFNP
20
72
347
30/20.0
50/125 MULTIMODE OM3
Part Number
Cable Rating
Norminal Diameter
(mm)
Fiber Count
Weight kg/km
Bend Radius
(Install/Operate cm)
RISER
M50IO02CM3NRBL
OFNR
4.4
2
15
6.6/4.4
>M50IO04CM3NRBL
OFNR
4.8
4
20
7.2/4.8
M50IO06CM3NRBL
OFNR
5.3
6
25
8.0/5.3
M50IO08CM3NRBL
OFNR
5.8
8
32
8.7/5.8
M50IO12CM3NRBL
OFNR
6.3
12
43
9.5/6.3
M50IO24CM3NRBL
OFNR
8.3
24
54
12.5/8.3
M50IO48CM3NRBL
OFNR
15.4
48
186
23.1/15.4
M50IO72CM3NRBL
OFNR
20
72
315
30/20.0
PLENUM
M50IO02CM3NPBL
OFNP
4.4
2
18
6.6/4.4
M50IO04CM3NPBL
OFNP
4.8
4
24
7.2/4.8
M50IO06CM3NPBL
OFNP
5.3
6
29
8.0/5.3
M50IO08CM3NPBL
OFNP
5.8
8
39
8.7/5.8
M50IO12CM3NPBL
OFNP
6.3
12
52
9.6/6.3
M50IO24CM3NPBL
OFNP
8.3
24
64
12.5/8.3
M50IO48CM3NPBL
OFNP
15.4
48
218
23.1/15.4
M50IO72CM3NPBL
OFNP
20
72
347
30/20.0
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M50IO02CM2NRBL | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| M50IO04CM2NRBL | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| M50IO06CM2NRBL | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| M50IO08CM2NRBL | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| M50IO12CM2NRBL | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| M50IO24CM2NRBL | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| M50IO48CM2NRBL | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| M50IO72CM2NRBL | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | M50IO02CM2NPBL | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| M50IO04CM2NPBL | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| M50IO06CM2NPBL | OFNP | 5.3 | 6 | 29 | 8.0/5.3 | |
| M50IO08CM2NPBL | OFNP | 5.8 | 8 | 39 | 8.7/5.8 | |
| M50IO12CM2NPBL | OFNP | 6.3 | 12 | 52 | 9.6/6.3 | |
| M50IO24CM2NPBL | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| M50IO48CM2NPBL | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| M50IO72CM2NPBL | OFNP | 20 | 72 | 347 | 30/20.0 | |
| Part Number | Cable Rating | Norminal Diameter (mm) |
Fiber Count | Weight kg/km | Bend Radius (Install/Operate cm) |
|
| RISER | M50IO02CM3NRBL | OFNR | 4.4 | 2 | 15 | 6.6/4.4 |
| >M50IO04CM3NRBL | OFNR | 4.8 | 4 | 20 | 7.2/4.8 | |
| M50IO06CM3NRBL | OFNR | 5.3 | 6 | 25 | 8.0/5.3 | |
| M50IO08CM3NRBL | OFNR | 5.8 | 8 | 32 | 8.7/5.8 | |
| M50IO12CM3NRBL | OFNR | 6.3 | 12 | 43 | 9.5/6.3 | |
| M50IO24CM3NRBL | OFNR | 8.3 | 24 | 54 | 12.5/8.3 | |
| M50IO48CM3NRBL | OFNR | 15.4 | 48 | 186 | 23.1/15.4 | |
| M50IO72CM3NRBL | OFNR | 20 | 72 | 315 | 30/20.0 | |
| PLENUM | M50IO02CM3NPBL | OFNP | 4.4 | 2 | 18 | 6.6/4.4 |
| M50IO04CM3NPBL | OFNP | 4.8 | 4 | 24 | 7.2/4.8 | |
| M50IO06CM3NPBL | OFNP | 5.3 | 6 | 29 | 8.0/5.3 | |
| M50IO08CM3NPBL | OFNP | 5.8 | 8 | 39 | 8.7/5.8 | |
| M50IO12CM3NPBL | OFNP | 6.3 | 12 | 52 | 9.6/6.3 | |
| M50IO24CM3NPBL | OFNP | 8.3 | 24 | 64 | 12.5/8.3 | |
| M50IO48CM3NPBL | OFNP | 15.4 | 48 | 218 | 23.1/15.4 | |
| M50IO72CM3NPBL | OFNP | 20 | 72 | 347 | 30/20.0 | |
