Optical Jumper Cord
홈 > PRODUCTS > Optical Jumper Cord

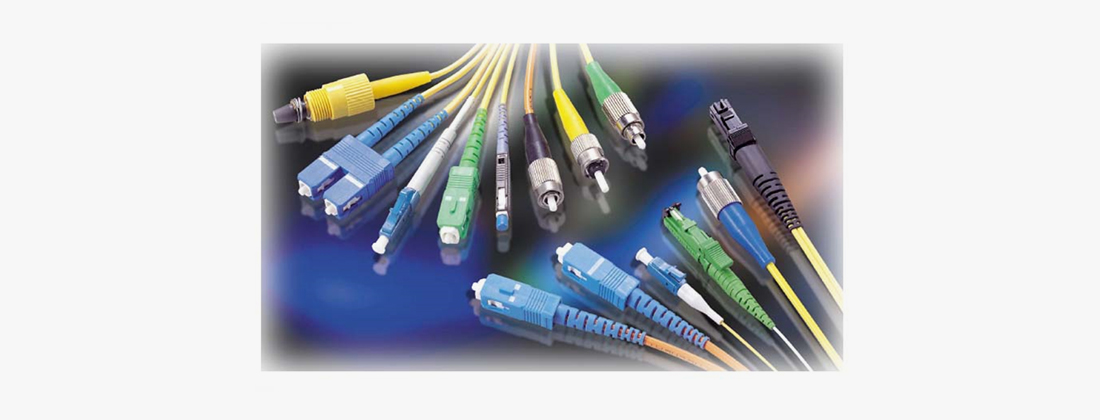

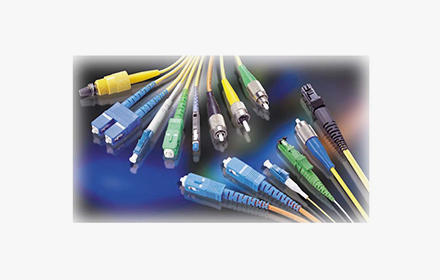

Optical Patch Cord
FEATURES
- Guaranteed performance specifications
- Various connector type available
- Low insertion loss and back reflection
APPLICATIONS
Optical fiber communications, LAN, CATV systems, Optical network equipments, Optical test equipments, Module pigtailsSPECIFICATION
P A R A M E T E R
TYPE
Spec.
Max.
Typ.
Insertion Loss(SM, MM, PM)
SC, FC, ST, D4, MU, LC, E2000
0.3
0.15
Biconic, MT-RJ
0.75
0.4
Insertion Loss(SM, MM, PM)
SPC
40
45
UPC
50
55
APC
60
68
Extinction Ratio
PM Fiber
20
28
Operating Temperature
℃
-40 ~ 75
Storage Temperature
℃
-40 ~ 85
| P A R A M E T E R | TYPE | Spec. | |
| Max. | Typ. | ||
| Insertion Loss(SM, MM, PM) | SC, FC, ST, D4, MU, LC, E2000 | 0.3 | 0.15 |
| Biconic, MT-RJ | 0.75 | 0.4 | |
| Insertion Loss(SM, MM, PM) | SPC | 40 | 45 |
| UPC | 50 | 55 | |
| APC | 60 | 68 | |
| Extinction Ratio | PM Fiber | 20 | 28 |
| Operating Temperature | ℃ | -40 ~ 75 | |
| Storage Temperature | ℃ | -40 ~ 85 | |
